To constrain assembly component motion to a path:
1- Select Insert >
Mate

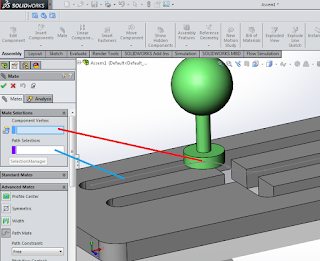

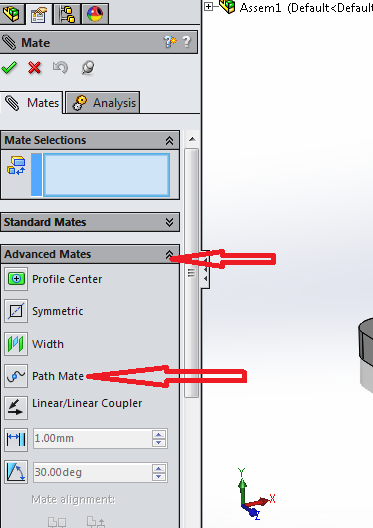

2- Define a path mate for
components.
3- Measure the path length
4- Select the Motion Study
tab, and select Motion Analysis for Type of Study.
5- Include motion study
elements as necessary You must include a
Motor
Complexity: Basic
Type of study: Motion Analysis
Type of study: Motion Analysis
MotionManager toolbar: Motor
Assembly mates:
Coincident,PathMate
