In this tutorial, we will simulate " Bobcat_skid_steer" Motion

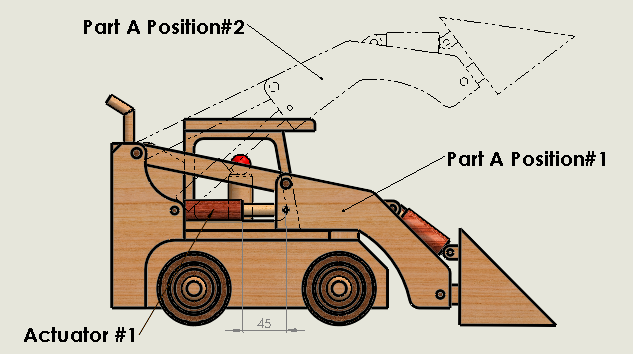

In figure 1 "Part A" move from position 1 to position 2 when actuator #1 extends 45 mm
Fig-1

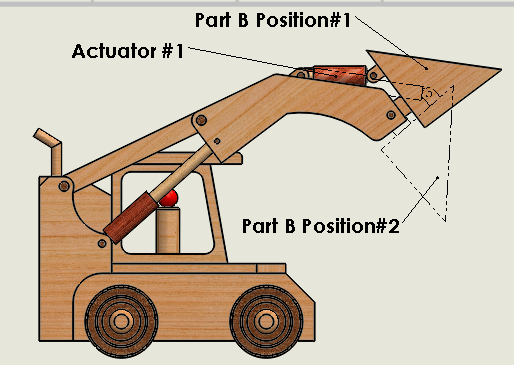

In figure 2 "Part B" move from position 1 to position 2 when actuator #1 extends 50 mm
Watch video tutorials |

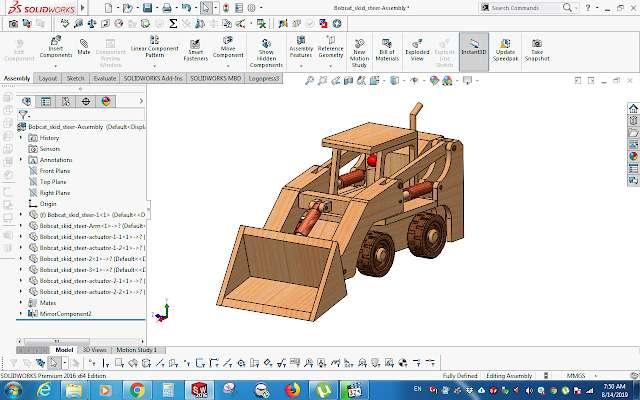

Open "Bobcat_skid_steer-Assembly"
Start New Motion Study and click on " Motor " icon
first motion set (0:5) seconds

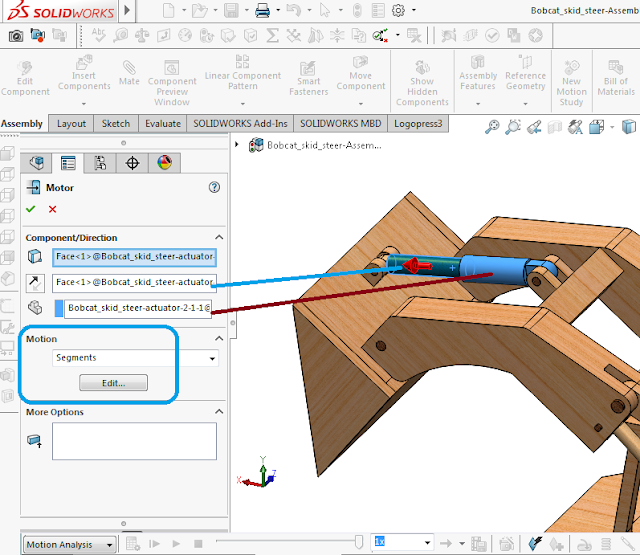

and click on " Motor " iconTo open the Motor PropertyManager
set the value as shown in figure
and click ok
Second motion set (5:10) seconds
and click on " Motor " iconTo open the Motor PropertyManager
set the value as shown in figure

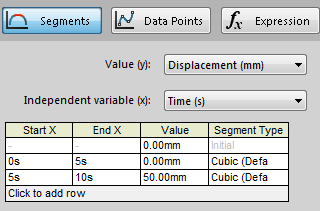

click Edit.. and set segment motion setting
set the value as shown in the figure
this means that actuator 2 will start motion after 5 seconds
and click ok
set the end time 10 seconds
and click calculate icon
