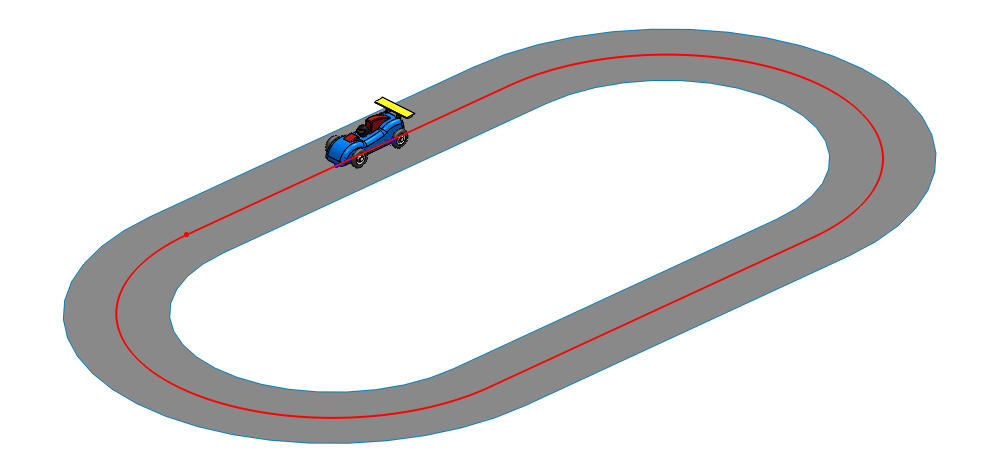

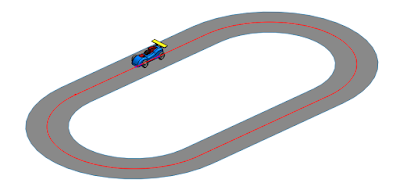

In this tutorial, we will simulate the motion in racing road
Open "Car&Road"
In the assembly model, I have created three mates

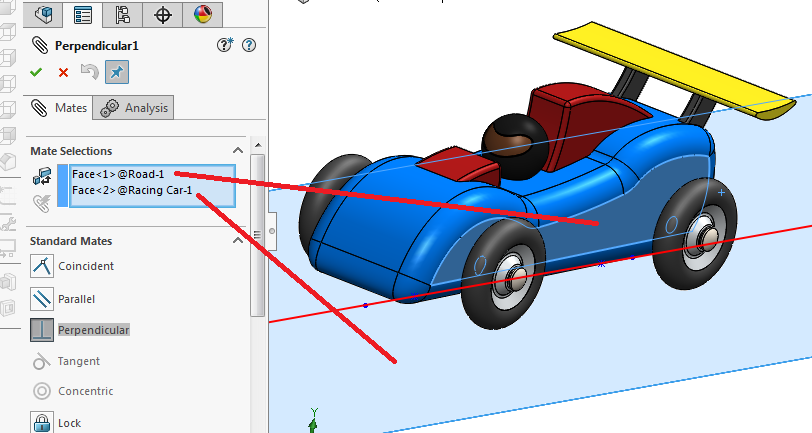

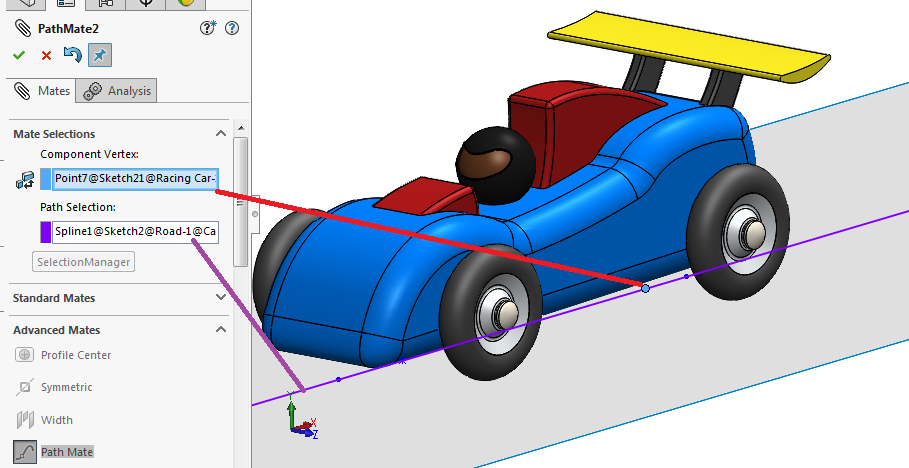

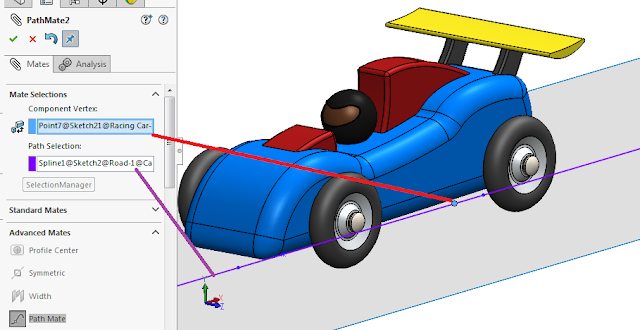

>> PathMate1,PathMate2 and Perpendicular1Mate
Start New Motion Study and click on " Motor " icon
Click on " Motor " icon
To open the Motor PropertyManager

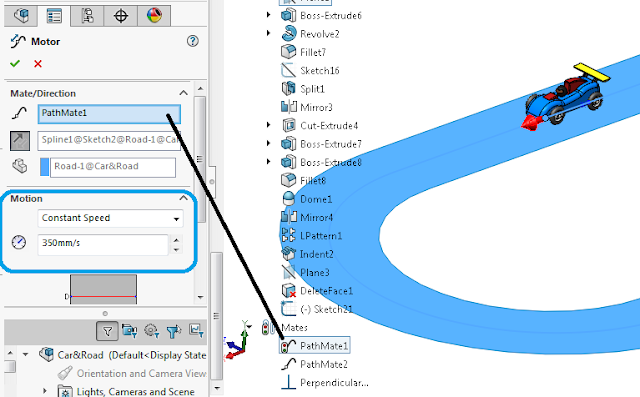

select " Path Mate Motor "
set the value as shown in the figure
and click ok
and click calculate icon
