Solidworks Motion Study Tutorials | How to use Torsional Force

In this lesson, we will simulate the effect of truck engine torque

To do this simulation, we will assume that the truck is moving on an unpaved road

We will add the effect of engine torque on the rear wheel of the truck

Download Project files...

Open "Wooden  truck- Assembly"

Start New Motion Study

Set the type of study " Motion analysis"

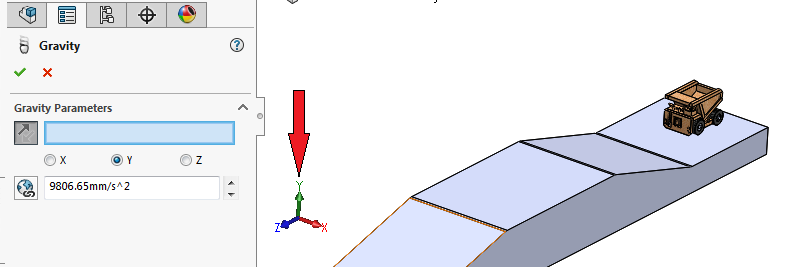

To add the effect   the component's weights  click on " gravity" icon

Set the direction opposite to Y

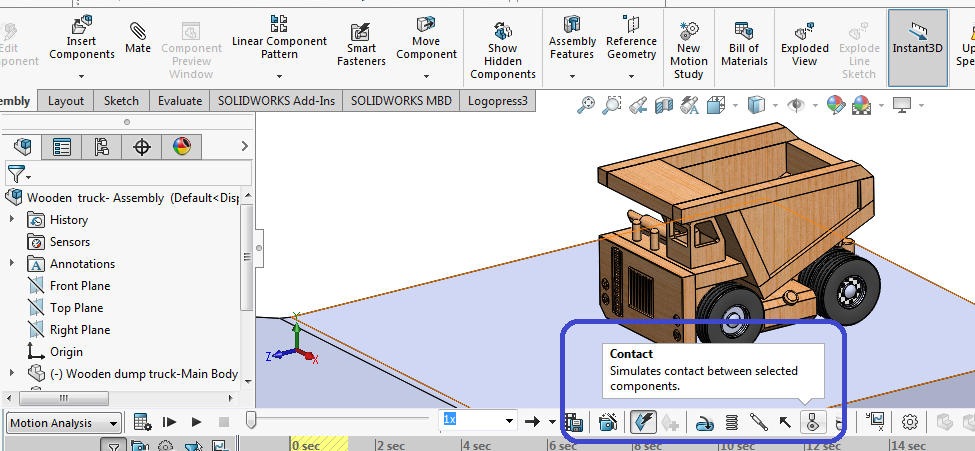

Click "contact" icon

Contact set #1

Contact set #2

Click on " Force " icon

To open the Motor PropertyManager

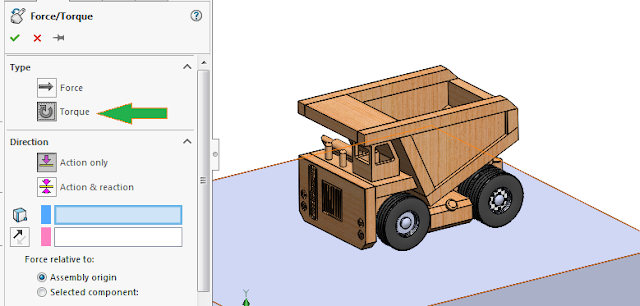

select " Torque "

set the value as shown in the figure

set the end time 5 seconds

and click calculate icon
