Solidworks Motion Study Tutorials | How to use Linear Spring

In this lesson, we will simulate the wooden cannons work

Download Project files...

Open "cannons-Assembly"

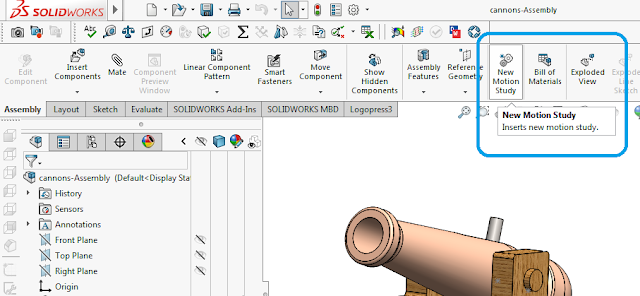

Start New Motion Study

Set the type of study " Motion analysis"

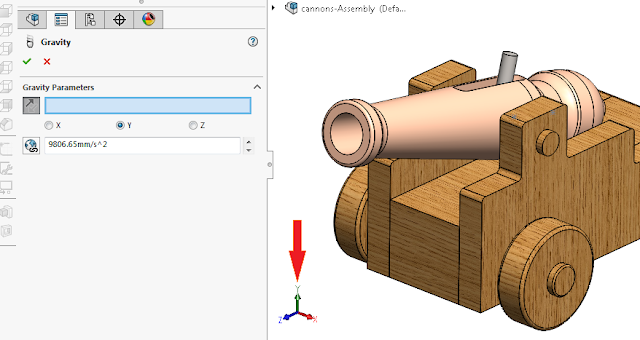

To add the effect   the component's weights  click on " gravity" icon

Set the direction opposite to Y

Click "contact" icon

Contact set #1

Contact set #2

Click on " Spring " icon

To open the Motor PropertyManager

select " Linear spring  "

set the end time 5 seconds

and click calculate icon
