Solidworks Motion Study Tutorials | How to use Torsional Spring
In this lesson, we will simulate the Catapult Kit work
Open "Catapult Kit-Assembly"
Set the type of study " Motion analysis"
To add the effect the component's weights click on " gravity" icon
Set the direction opposite to Y

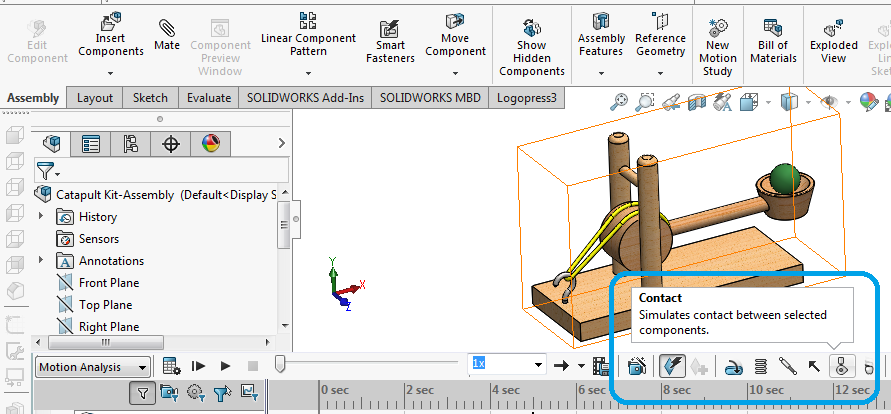

Click "contact" icon

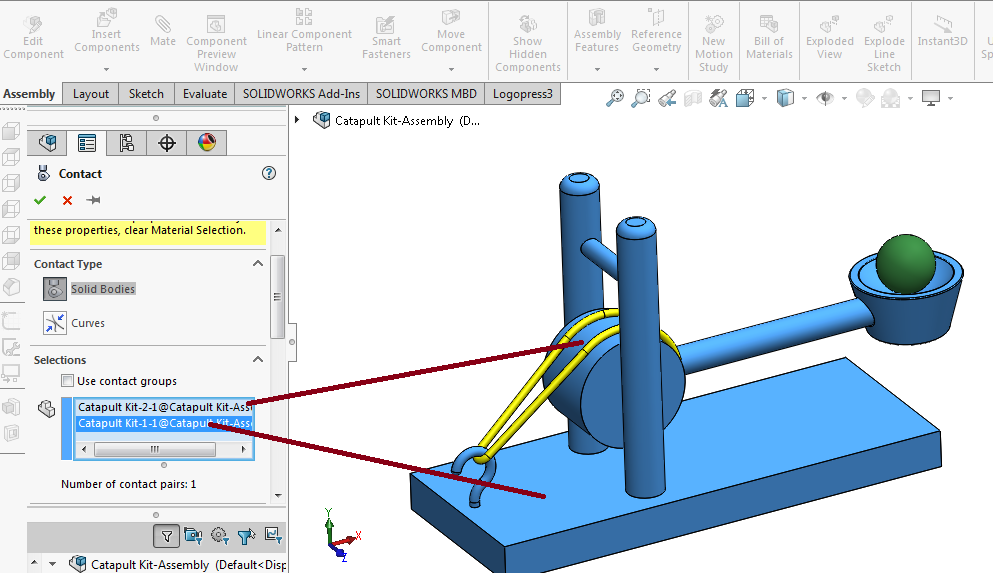

Contact set #1
Contact set #2
Click on " Spring " icon
select " Torsional spring "
suppress parrell matt
Set the direction opposite to Y
Click "contact" icon
Contact set #1
Contact set #2
Click on " Spring " icon
To open the Motor PropertyManager
select " Torsional spring "
suppress parrell matt
set the end time 5 seconds
and click calculate icon
