Solidworks Motion Study Tutorials | Chain drive

In this lesson, we will simulate Chain drive_Mechanism

original idea

Download Project files...

Open "Chain drive 4A test" Assembly

show "Form " part

show "sketch4 " part

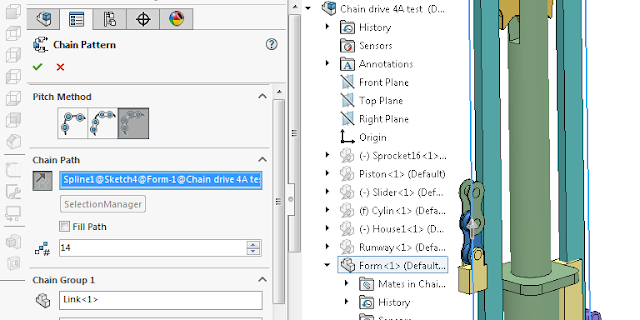

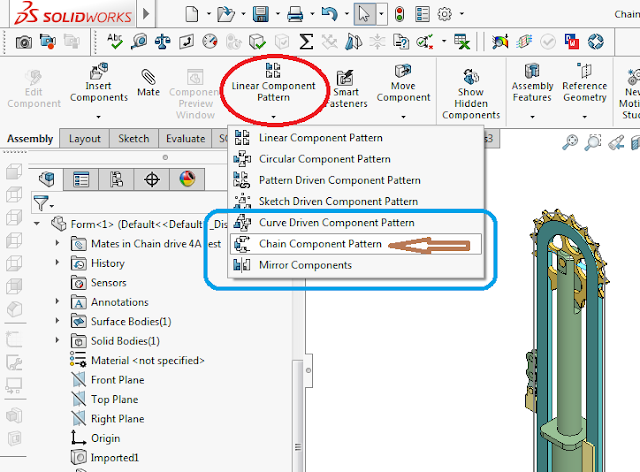

Create a chain part

step #1

step #2

step #3

step #4

step #5

step #6 adjust the slider position

step # 7 create "Linear/Linear Coupler1"

step # 8

step # 9 open "Sprocket " part

step # 10 show "sketch1"

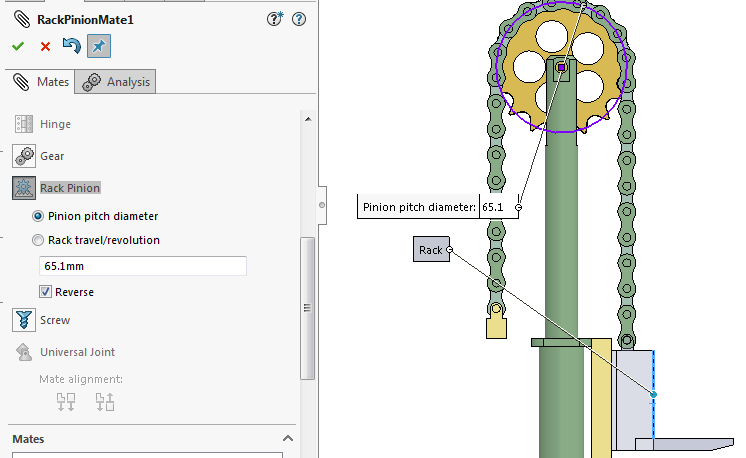

step # 11 create "RackPinionMate1" Mate

step # 12 Start New Motion Study

step # 13 Set the type of study " Animation"

step # 14 move the time bar to 5 seconds
and move the slider down

step # 15 move the time bar to 10 seconds

and move the slider up

step # 16 click calculate icon
