Solidworks Motion Study Tutorials | Face_Gear
Solidworks Motion Study Tutorials | Face_Gear
In this lesson, we will simulate Face_Gear_Mechanism

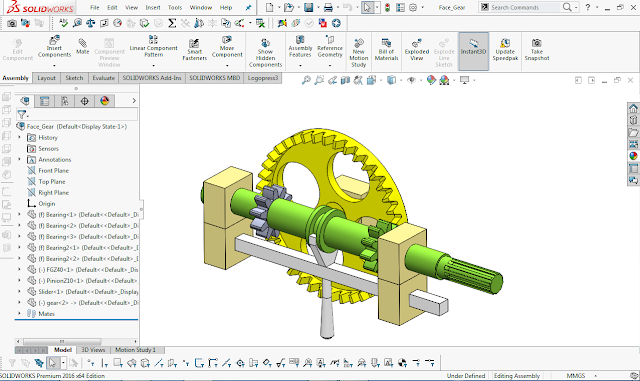

Open "Face_Gear" Assembly

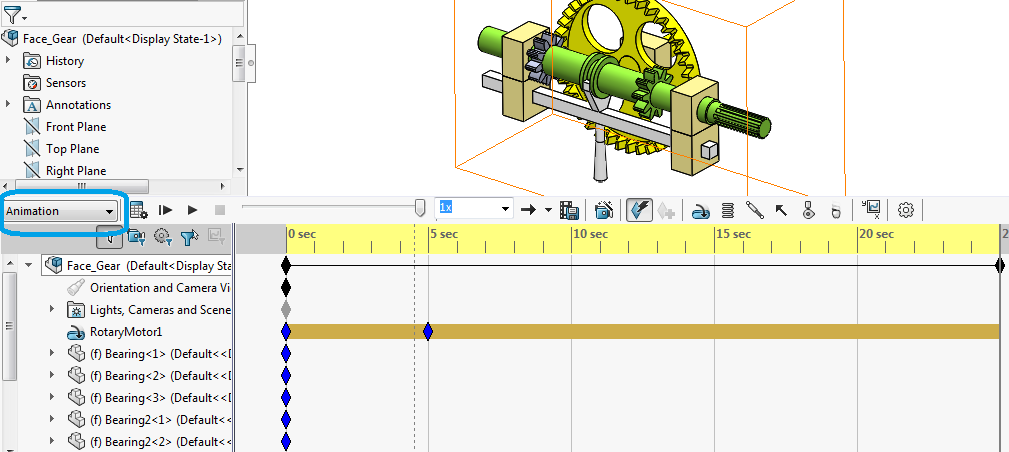

Start New Motion Study
Set the type of study " Motion analysis"
Click on the " Motor " icon
in motion type select "Segment"

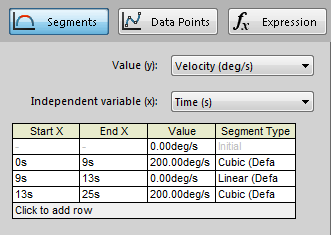

set the values as shown in the next figure
set the time 25 second
move the time bar to 13 seconds
suppressed the "position#1" matt folder
unsuppressed the "position#2" matt folder
unsuppressed the "position#1" matt folder
suppressed the "position#2" matt folder
and click calculate icon
suggested course for motion study
