Solidworks Motion Study Tutorials | Vertical Lift Conveyor motion simulation

In this lesson, we will simulate Vertical Lift Conveyor motion simulation

 Step #1

 Download Project files...

Step #2

open "Assembly -Ex" file

Step #3

create a plane

Step #4

select the new plane and create a sketch

Step #5

insert "PinLink" part

Step #6

create "PathMate"

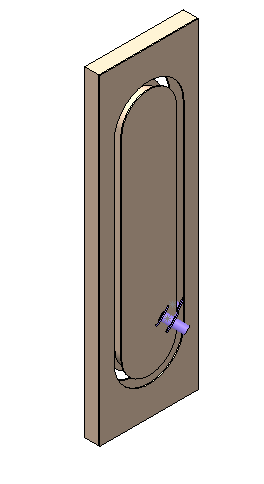

Step #7

Isolate the two parts

Step #8

Create "Parallel" mate

Step #9

Exit isolate

Step #10

Create "Parallel" mate

Step #11

Create "Concentric"

Step #12

Start " New motion study"

Step #13

Select  "Motion analysis"

Step #14

Click the "Gravity" icon

Step #15

Click the "Motor" icon

Step #16

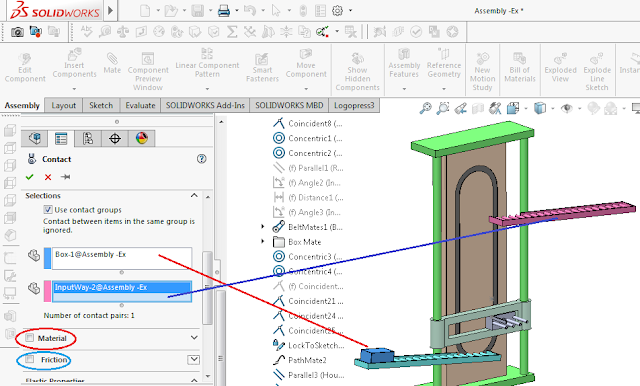

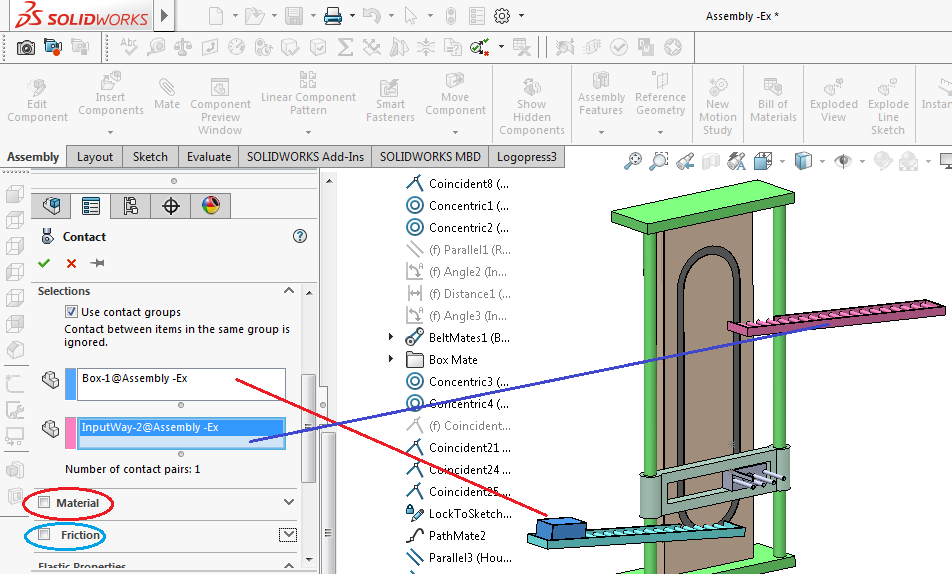

Click the "Contact" icon

contact set 1

contact set 2

Step #17

suppress the box mate folder

Step #18

move the time bar to 30 seconds

Step #18

click calculate icon
