Solidworks Motion Study Tutorials | Ratchet mechanism motion simulation

In this lesson, we will simulate Ratchet mechanism motion simulation

 Step #1

 Download Project files...

Step #2

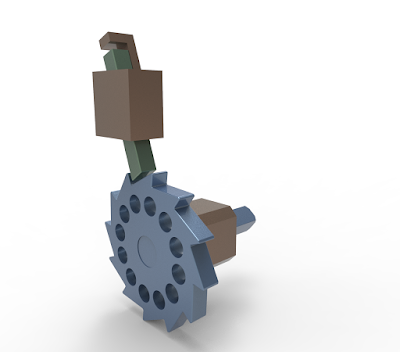

open "Ratchet mechanism Assembly" file

Step #3

Start " New motion study"

Step #4

Select  "Motion analysis"

Step #5

Click the "Contact" icon

contact set 1

Step #6

Click the "spring " icon

Step #7

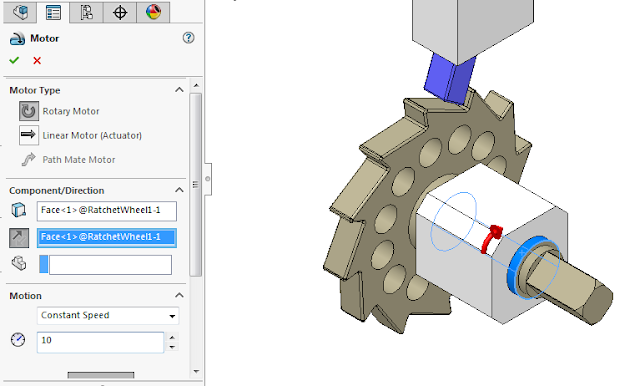

Click the "Motor" icon

Step #8

move the time bar to 10 seconds

Step #9

click calculation icon
