Solidworks Motion Study Tutorials | Ratchet mechanism-2 motion simulation

In this lesson, we will simulate Ratchet mechanism motion simulation

Step #1

 Download Project files...

Step #2

open "Ratchet mechanism Assembly" file

Step #3

Start " New motion study"

Step #4

Select  "Motion analysis"

Step #5

Click the "Gravity " icon

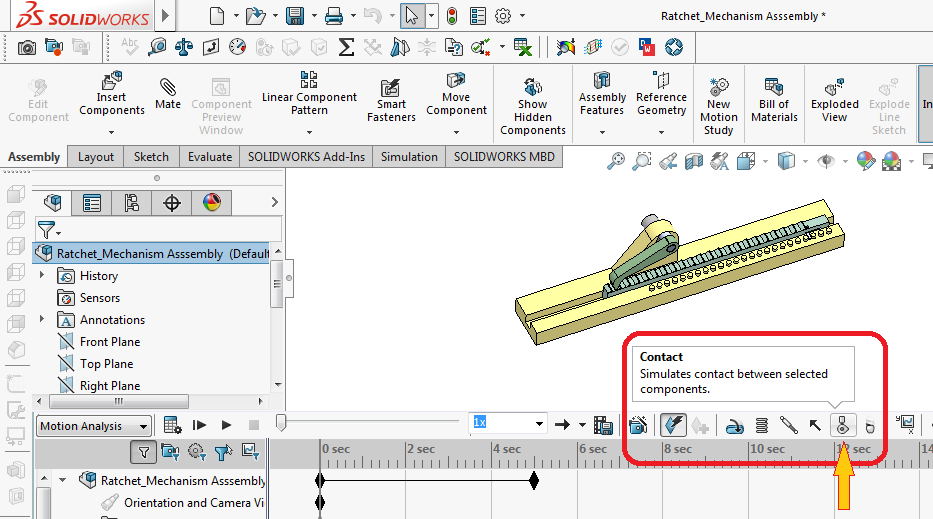

Step #6

Click the "Contact" icon

contact set 1

contact set 2

Step #7

Click the "Motor" icon

Step #8

Click the "spring " icon

Step #9

move the time bar to 40 seconds

Step #10

Click the "setting " icon

Step #11

click calculation icon
