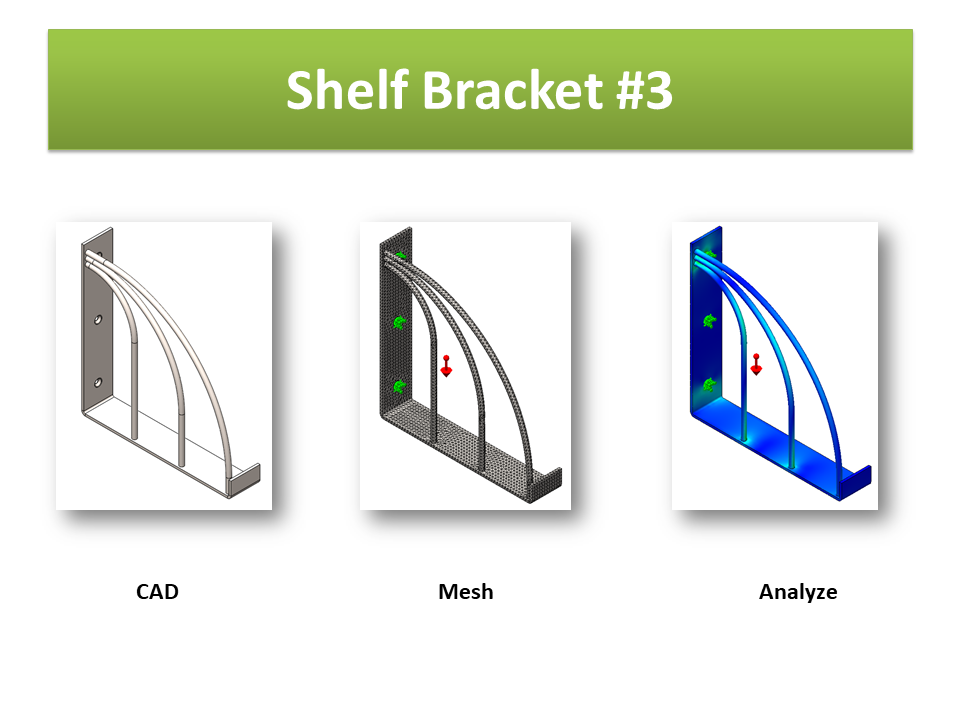

In this tutorials, we will simulate the load on a shelf bracket using Solidworks simulation the goals of this series is
- Select the best design to carry 50 kg of load.
- Bracket Material will be Alloy steel
- we compare all types to get the best design
>>> factor of safety
>>> minimum weight.
>>> manufacture process.
Simulation study will be Linear static analysis
>>> Load is constant.
>>> Bracket deformation is very low
